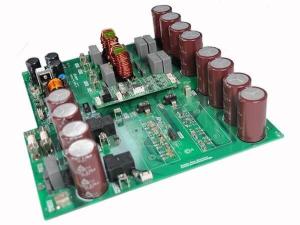

CEM1/FR4/Roger/Ceramic PCB&PCBA Board Manufacturer PCB Design and Layout Services
PCBA Capabilities
| 1 | SMT assembly including BGA assembly |
| 2 | Accepted SMD chips: 0204, BGA, QFP, QFN, TSOP |
| 3 | Component height: 0.2-25mm |
| 4 | Min packing: 0204 |
| 5 | Min distance among BGA : 0.25-2.0mm |
| 6 | Min BGA size: 0.1-0.63mm |
| 7 | Min QFP space: 0.35mm |
| 8 | Min assembly size: (X*Y): 50*30mm |
| 9 | Max assembly size: (X*Y): 350*550mm |
| 10 | Pick-placement precision: ±0.01mm |
| 11 | Placement capability: 0805, 0603, 0402 |
| 12 | High pin count press fit available |
| 13 | SMT capacity per day: 80,000 points |
-- Capability - SMT
| Lines | 9(5 Yamaha,4KME) |
| Capacity | 52 million placements per month |
| Max Board Size | 457*356mm.(18"X14") |
| Min Component size | 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP |
| Speed | 0.15 sec/chip,0.7 sec/QFP |
- Capability - PTH
| Lines | 2 |
| Max board width | 400 mm |
| Type | Dual wave |
| Pbs status | Lead-free line support |
| Max temp | 399 degree C |
| Spray flux | add-on |
| Pre-heat | 3
|
Company Profile
Abis Circuits Co., Ltd, a professional PCB manufacturer which was established on Oct, 2006. Focus on double side, Multilayer and HDI pcb mass production.
We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders. Another in Jiangxi province is for big volume and HDI.
Pre-Sale and After-Sale Service
1 Hour quotation
2 hours of complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run
Company Show
Production Processes
Material Receiving → IQC → Stock → Material to SMT → SMT Line Loading → Solder Paste/Glue Printing → Chip Mount → Reflow → 100% Visual Inspection → Automated Optical Inspection (AOI) → SMT QC Sampling → SMT Stock → Material to PTH → PTH Line Loading → Plated Through Hole → Wave Soldering → Touch Up → 100% Visual Inspection → PTH QC Sampling → In-Circuit Test (ICT) → Final Assembly → Functional Test (FCT) → Packing → OQC Sampling → Shipping
FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We specialize in PCB/PCBA Board for 11 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect the customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how do you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be faster. Due to there are many steps to PCB production, we usually do an inspection after every step.
Q4: What's your shipping way?
A: 1. We have our own forwarder to ship goods By DHL, UPS, FedEx, TNT, and EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA, Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost-saving for customers.
. We have two shops together, one is for prototype, quick turn, and small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high-quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic support, on a worldwide basis hours of complaint feedback.
Please keep us informed of any interest!
ABIS cares about every your order even 1 piece!
